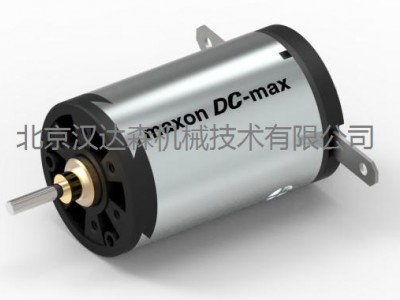

| 品牌maxon motor | 有效期至長期有效 | 最后更新2022-01-19 10:52 |
| 直徑26 mm | 功率22W | 電壓48V |
| 瀏覽次數69 |
| 楊文輝 QQ：2850590598 手機：18301216381 電話：010-64717020-118 傳真：010-84786709-666 郵件：sales11@handelsen.cn |
 |
 |
| 額定電壓值 | |
| 額定電壓 | 48 V |
| 空載轉速 | 8730 rpm |
| 空載電流 | 25.7 mA |
| 額定轉速 | 7840 rpm |
| 額定轉矩（最大連續轉矩） | 28.3 mNm |
| 額定電流（最大連續負載電流） | 0.567 A |
| 堵轉轉矩 | 278 mNm |
| 堵轉電流 | 5.31 A |
| 最大效率 | 87 % |
| 特征值 | |
| 相間電阻 | 9.04 ? |
| 相間電感 | 1.16 mH |
| 轉矩常數 | 52.2 mNm/A |
| 轉速常數 | 183 rpm/V |
| 轉速/轉矩斜率 | 31.6 rpm/mNm |
| 機械時間常數 | 5.04 ms |
| 轉子慣量 | 15.2 gcm² |
| 熱參數 | |
| 外殼-環境熱阻 | 13.2 K/W |
| 繞組-外殼熱阻 | 3.2 K/W |
| 繞組熱時間常數 | 18.1 s |
| 電機熱時間常數 | 350 s |
| 環境溫度 | -30...+85 °C |
| 繞組最高允許溫度 | +100 °C |
| 機械參數 | |
| 最大允許轉速 | 11000 rpm |
| 軸向間隙 | 0.1 - 0.2 mm |
| 徑向間隙 | 0.012 mm |
| 最大軸向載荷（動態） | 1.7 N |
| 最大軸向壓配合力（靜態） | 80 N |
| （靜態，支撐軸） | 1200 N |
| 最大徑向載荷 | 5.5 N, 5 mm（距離法蘭） |
| 其它參數 | |
| 極對數 | 1 |
| 換向片數量 | 13 |
| 高溫高壓滅菌次數 | 0 |
| 產品 | |
| 重量 | 120 g |
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷 CLL Tahoma">，滾珠軸承 16 mm 2 W 6 V 7890 rpm 4.04 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷 CLL Tahoma">，滾珠軸承 16 mm 2 W 12 V 7550 rpm 3.91 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷 CLL Tahoma">，滾珠軸承 16 mm 2 W 24 V 7470 rpm 3.78 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷 CLL Tahoma">，滑動軸承 16 mm 2 W 6 V 7890 rpm 4.06 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷 CLL Tahoma">，滑動軸承 16 mm 2 W 12 V 7560 rpm 3.92 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷 CLL Tahoma">，滑動軸承 16 mm 2 W 24 V 7470 rpm 3.8 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 16 mm 3 W 6 V 9960 rpm 3.79 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 16 mm 3 W 12 V 9960 rpm 4.41 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 16 mm 3 W 24 V 10000 rpm 4.87 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 16 mm 3 W 6 V 9870 rpm 3.71 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 16 mm 3 W 12 V 9860 rpm 4.31 mNm
DC-max 16 S Ø16 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 16 mm 3 W 24 V 9920 rpm 4.76 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 22 mm 5 W 6 V 5490 rpm 8.55 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 22 mm 5 W 12 V 5890 rpm 10.3 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 22 mm 5 W 24 V 5090 rpm 10.4 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 22 mm 5 W 6 V 5480 rpm 8.54 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 22 mm 5 W 12 V 5890 rpm 10.3 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 22 mm 5 W 24 V 5090 rpm 10.4 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 22 mm 8 W 6 V 7040 rpm 11.3 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 22 mm 8 W 12 V 7140 rpm 12.5 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 22 mm 8 W 24 V 7340 rpm 11.8 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 22 mm 8 W 6 V 7030 rpm 11.3 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 22 mm 8 W 12 V 7140 rpm 12.5 mNm
DC-max 22 S Ø22 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 22 mm 8 W 24 V 7330 rpm 11.8 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 26 mm 9 W 12 V 4460 rpm 21 mNm
DC-max 26 S Ø26 mm Tahoma">，稀有金屬電刷CLL mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">， Tahoma">滾珠軸承 26 mm 9 W 24 V 4370 rpm 28.9 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 26 mm 9 W 12 V 4460 rpm 20.8 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">，稀有金屬電刷CLL Tahoma">， Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 26 mm 9 W 24 V 4370 rpm 28.8 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 26 mm 22 W 24 V 8930 rpm 26.6 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滾珠軸承 26 mm 22 W 48 V 8740 rpm 29.4 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 26 mm 22 W 24 V 8920 rpm 26.3 mNm
DC-max 26 S Ø26 mm Tahoma;mso-hansi-font-family:Tahoma">，石墨電刷， mso-ascii-font-family:Tahoma;mso-hansi-font-family:Tahoma">滑動軸承 26 mm 22 W 48 V 8730 rpm 28.3 mNm
