mattke SM系列三相異步電機產品介紹

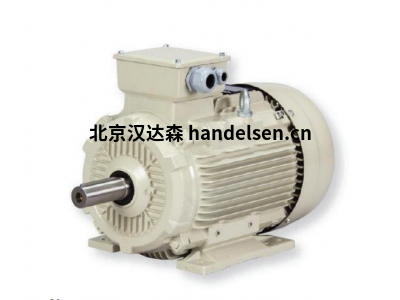

采用灰鑄鐵外殼的 SM系列異步電機
結構特點：
• 外殼和端蓋由灰鑄鐵制成。
• IE2 和IE3 電機具有相同的尺寸。
• 金屬風扇罩
• 塑料風扇。 （聚丙烯）
• 兩個 160 號吊耳
• PTC 熱敏電阻 150 °C 的熱繞組保護。
• 不銹鋼銘牌。
• 可拆卸底板，用于將接線盒定位在左側或右側。
• 安裝孔配有螺紋孔。
• 由于采用對稱支架，接線盒布置在 N 側。
• 接線盒位于頂部，可四個方向旋轉90°。
• 提供用于電機的電纜密封套和盲塞以及用于 PTC 熱敏電阻連接的電纜密封套。
• 兩個接地端子，一個在接線盒中，一個在外殼上。
• 標準電機的絕緣等級為 F 級，加熱為 B 級。
• 環境溫度為 40°C 時，最大溫升為 80 K。
防護等級
防護等級 IP55。電機裝有軸密封圈，以確保良好的防塵性。
滾動軸承密封圈
電機配備SKF、FAG、NSK、NTN球軸承。 D 側固定軸承。
尺寸為 180 毫米的再潤滑裝置。
IE2 SM2-160MC2型號具體參數舉例：
功率：11 kW
轉速：2950 min-1
功率因數：0.89
效率：89.5%
電流（400V 50HZ）：19.9A
扭矩：36.3 NM
轉子慣量：0,154kgm2
聲噪：72dB
重量：125KG
IE3 SM3-160MC2型號具體參數舉例：
功率：11 kW
轉速：2935 min-1
功率因數：0.9
效率：91.5%
電流（400V 50HZ）：19.8A
扭矩：36.4 NM
轉子慣量：0,183kgm2
聲噪：72dB
重量：138KG
mattke SM系列異步電機具體型號：
MATTKE SM2-160MC2
MATTKE SM2-160M2
MATTKE SM2-160L2
MATTKE SM2-180MA2
MATTKE SM2-200LA2
MATTKE SM2-200L2
MATTKE SM2-225MA2
MATTKE SM2-250MA2
MATTKE SM2-280SA2
MATTKE SM2-280MA2
MATTKE SM2-315SA2
MATTKE SM2-315MA2
MATTKE SM2-315M2
MATTKE SM2-315LA2
MATTKE SM2-315DA2
MATTKE SM2-315D2
MATTKE SM2-160M4
MATTKE SM2-160L4
MATTKE SM2-180MC4
MATTKE SM2-180LC4
MATTKE SM2-200LC4
MATTKE SM2-225SC4
MATTKE SM2-225MC4
MATTKE SM2-250MC4
MATTKE SM2-280SC4
MATTKE SM2-280MC4
MATTKE SM2-315SC4
MATTKE SM2-315MC4
MATTKE SM2-315M4
MATTKE SM2-315LC4
MATTKE SM2-315DC4
MATTKE SM2-315D4
MATTKE SM2-160M6
MATTKE SM2-160L6
MATTKE SM2-180LC6
MATTKE SM2-200LC6
MATTKE SM2-200L6
MATTKE SM2-225MC6
MATTKE SM2-250MC6
MATTKE SM2-280SC6
MATTKE SM2-280MC6
MATTKE SM2-315SC6
MATTKE SM2-315MC6
MATTKE SM2-315M6
MATTKE SM2-315LC6
MATTKE SM2-315L6
MATTKE SM2-315DC6
MATTKE SM2-315D6
MATTKE SM2-160MC8
MATTKE SM2-160M8
MATTKE SM2-160L8
MATTKE SM2-180L8
MATTKE SM2-200L8
MATTKE SM2-225SC8
MATTKE SM2-225MC8
MATTKE SM2-250MC8
MATTKE SM2-280SC8
MATTKE SM2-280MC8
MATTKE SM2-315SC8
MATTKE SM2-315MC8
MATTKE SM2-160MC2
MATTKE SM2-160M2
MATTKE SM2-160L2
MATTKE SM2-180MA2
MATTKE SM2-200LA2
MATTKE SM2-200L2
MATTKE SM2-225MA2
MATTKE SM2-250MA2
MATTKE SM2-280SA2
MATTKE SM2-280MA2
MATTKE SM2-315SA2
MATTKE SM2-315MA2
MATTKE SM2-315M2
MATTKE SM2-315LA2
MATTKE SM2-315DA2
MATTKE SM2-315D2
MATTKE SM2-160M4
MATTKE SM2-160L4
MATTKE SM2-180MC4
MATTKE SM2-180LC4
MATTKE SM2-200LC4
MATTKE SM2-225SC4
MATTKE SM2-225MC4
MATTKE SM2-250MC4
MATTKE SM2-280SC4
MATTKE SM2-280MC4
MATTKE SM2-315SC4
MATTKE SM2-315MC4
MATTKE SM2-315M4
MATTKE SM2-315LC4
MATTKE SM2-315DC4
MATTKE SM2-315D4
MATTKE SM2-160M6
MATTKE SM2-160L6
MATTKE SM2-180LC6
MATTKE SM2-200LC6
MATTKE SM2-200L6
MATTKE SM2-225MC6
MATTKE SM2-250MC6
MATTKE SM2-280SC6
MATTKE SM2-280MC6
MATTKE SM2-315SC6
MATTKE SM2-315MC6
MATTKE SM2-315M6
MATTKE SM2-315LC6
MATTKE SM2-315L6
MATTKE SM2-315DC6
MATTKE SM2-315D6
MATTKE SM2-160MC8
MATTKE SM2-160M8
MATTKE SM2-160L8
MATTKE SM2-180L8
MATTKE SM2-200L8
MATTKE SM2-225SC8
MATTKE SM2-225MC8
MATTKE SM2-250MC8
MATTKE SM2-280SC8
MATTKE SM2-280MC8
MATTKE SM2-315SC8
MATTKE SM2-315MC8
MATTKE SM3-160MC2
MATTKE SM3-160M2
MATTKE SM3-160L2
MATTKE SM3-180MA2
MATTKE SM3-200LA2
MATTKE SM3-200L2
MATTKE SM3-225MA2
MATTKE SM3-250MA2
MATTKE SM3-280SA2
MATTKE SM3-280MA2
MATTKE SM3-315SA2
MATTKE SM3-315MA2
MATTKE SM3-315M2
MATTKE SM3-315LA2
MATTKE SM3-315DA2
MATTKE SM3-315D2
MATTKE SM3-160M4
MATTKE SM3-160L4
MATTKE SM3-180MC4
MATTKE SM3-180LC4
MATTKE SM3-200LC4
MATTKE SM3-225SC4
MATTKE SM3-225MC4
MATTKE SM3-250MC4
MATTKE SM3-280SC4
MATTKE SM3-280MC4
MATTKE SM3-315SC4
MATTKE SM3-315MC4
MATTKE SM3-315M4
MATTKE SM3-315LC4
MATTKE SM3-315DC4
MATTKE SM3-315D4
MATTKE SM3-160M6
MATTKE SM3-160L6
MATTKE SM3-180LC6
MATTKE SM3-200LC6
MATTKE SM3-200L6
MATTKE SM3-225MC6
MATTKE SM3-250MC6
MATTKE SM3-280SC6
MATTKE SM3-280MC6
MATTKE SM3-315SC6
MATTKE SM3-315MC6
MATTKE SM3-315M6
MATTKE SM3-315LC6
MATTKE SM3-315L6
MATTKE SM3-315DC6
MATTKE SM3-315D6
MATTKE SM3-160MC8
MATTKE SM3-160M8
MATTKE SM3-160L8
MATTKE SM3-180L8
MATTKE SM3-200L8
MATTKE SM3-225SC8
MATTKE SM3-225MC8
MATTKE SM3-250MC8
MATTKE SM3-280SC8
MATTKE SM3-280MC8
MATTKE SM3-315SC8
MATTKE SM3-315MC8
